The Water Vapour Transmission Rate Tester measures the water vapour permeability or water vapour permeability coefficient of packaging materials such as plastic film.
Measures water vapor permeability and water vapor permeability coefficient of plastic films, etc. using the differential pressure method.

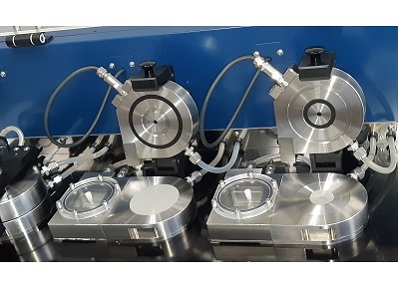

Measuring section supports two types of specimen sizes. (measuring section diameter ∅ 30 mm and ∅ 70 mm)
Modularization of the measuring section allows for additional modules to be added.
High-precision vacuum pressure gauge with a reading accuracy of 0.25.
E-mail function allows messages to be received when an error occurs or a test is completed.
CT1W
CT3W
Number of specimen
1
3
Measurement range
20 to 85°C, 80 to 90% RH (Depends on the combination)
Temperature control
Constant temperature water circulation (by chiller)
Specimen dimensions
50×50mm (Meas. section ∅30mm, through area 707mm²)
90×90mm (Meas. section ∅70mm, through area 3848mm²)
Water vapour transmission measurement range
Type A: 0.001 to 1.000 [g/(m²・24h)]
Type B: 0.01 to 100.00 [g/(m²・24h)]
Note: Vacuum pressure gauge: Accuracy 0.25% of reading
Supply gas
0.5MPa (Gas cylinder recommended)
Medium for water vapour
Water (Class A1 or better specified in JIS K 0557)
Measurement item
Water vapour transmission rate [g/(m²・24h)]
Water vapour permeability coefficient (g・mm/(m²・24h)]
Data processing & control
PC
Option
N/A
Additional measurement module, model MCT1W (1 test station)
Max. 2 additional units possible
Power supply
Main unit: Single-phase, AC100V, 50/60Hz, 5A
PC: Single-phase, AC100V, 50/60Hz, 3A
Vacuum pump: Single-phase, AC100V, 50/60Hz, 6A
Chiller: Single-phase, AC100V, 50/60Hz, 15A
Compressed air
0.4MPa
Dimensions
W550 × D560 × H470mm
W800 × D560 × H470mm
Weight
Approx. 50kg
Approx. 70kg
Related standards
ISO 15106-5
Plastics — Film and sheeting — Determination of water vapour transmission rate — Part 5: Pressure sensor method
