Coefficient of Friction (COF) Tester (Horizontal Plane) | 557-HM-3
Coefficient of Friction (COF) Tester (Horizontal Plane) | 557-HM-3
ISO 8295 (Plastics — Film and sheeting — Determination of the coefficients of friction)
The HM-3 Friction Tester measures and digitally display friction coefficient of films and papers.
| Related standards | |
| ISO 8295 | Plastics — Film and sheeting — Determination of the coefficients of friction |
| JIS K 7125 | Plastics−Film and sheeting− Determination of the coefficients of friction |
| JIS P 8147 | Paper and board- Determination of the static and kinetic coefficients of friction |
| Model | HM-3 |
| Dimensions of table | W330 × D225 t=5 |
| Table travel distance | 1 to 200mm |
| Table speed range | 5 to 1500mm/min. |
| Load cell | ● 10N
● 20N ● 50N (to be selected) |
| Sled | ● 200g, 63×63mm
● 1000g, 60×100mm (to be selected) |
| Power supply | Single-phase, AC100-240V, 50/60Hz, 0.2kVA |
| Dimensions | W540 (max.630) × D350 × H280mm
(W650 × D350 × H330mm, with optional safety cover) |
| Weight (approx.) | 19kg |
OPTIONS
| Optional sled, 200g, 63.5 x 63.5mm | Reference standard: ASTM D1894 |
| SP-M20 | Test speed, 5 to 2000mm/min. |
| D3 | Testing software |
| PS-BS1 | Mini printer |

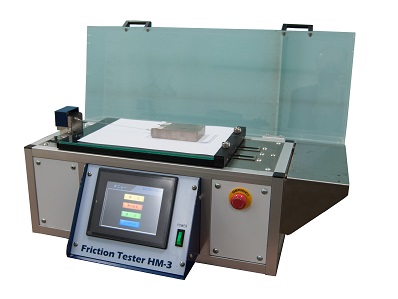

| ASC-LS | Safety cover |
| TBL-MG | Magnet holder type table |
| SL-MG2 | Sled with magnet holder, 63 x 63mm, 200g |
| SL-MG1 | Sled with magnet holder, 60 x 100mm, 1000g |
