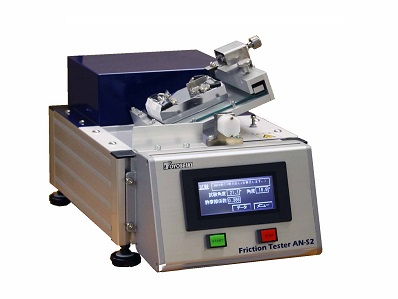

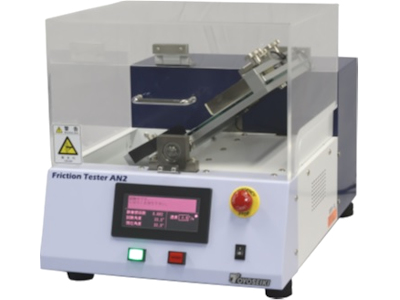

Friction Tester, AN (Slip Tester) | No.557COF Tester
The Friction Tester, AN evaluates friction coefficient by placing sample on an inclined plane, gradually increasing the angle of inclination and determining the angle at which the block starts moving.
Specifications
| Measurement range of coefficient of static friction | 0 to 2.747 |
| Max. table angle | 70° |
| Table inclination speed | 1.0, 1.5, 2.0, 2.7, 3.0°/s |
| Table dimensions | W320 x D210mm |
| Sled | W60 x 100mm, 1000g |
| Dimensions | W360 × D550 × H250 mm |
| Mass (Approx.) | 28 kg |
| Power supply | Single-phase, AC100V, 50/60Hz, 0.3kVA (or specify) |
Related standards
ASTM D4521
JIS P 8147
