Melt Indexer (Melt Flow Indexer) G-02 | No.522-

  • G-02 with optional automatic cutting device
    G-02 with optional automatic cutting device

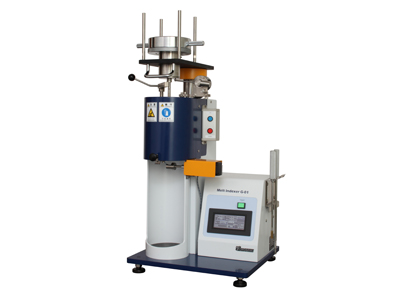

  • With optional weight lifting device and automatic cutting device
    With optional weight lifting device and automatic cutting device

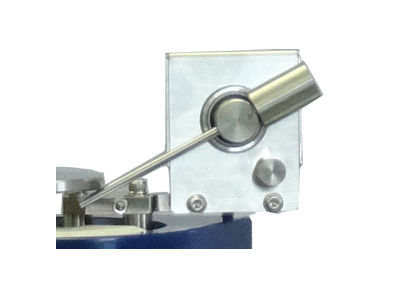

  • Encoder to measure MVR
    Encoder to measure MVR
  • G-02 with optional automatic cutting device
  • With optional weight lifting device and automatic cutting device
  • Encoder to measure MVR

Melt Indexer, G-02 is designed for measuring of the Melt Flow Rate (MFR) and Melt Volume Rate (MVR) of thermoplastic materials.

Specifications

Temperature range 100 to 350°C (Option 400°C)
Temperature accuracy ±0.2°C
Test loads
  • 0.325, 2.16kg (Standard)
  • 1, 1.05, 1.2, 3.8, 5, 10, 12.5, 21.6kg (Optional)
Touch screen Multi-lingual LCD touchscreen (English, Chinese, Korean, Japanese)
Power supply Selection:

  • Single-phase, AC100 to 115V, 50/60Hz, 0.6kVA
  • Single-phase, AC200 to 230V, 50/60Hz, 0.6kVA
Dimensions W400 x D370 x H560mm
Weight Approx. 40kg

Related standards

ISO 1133 Plastics-Determination of the melt mass-flow rate (MFR) and melt volume-flow rate (MVR) of thermoplastics
ASTM D1238 Standard Test Method for Melt Flow Rates of Thermoplastics by Extrusion Plastometer
