The Melt Flow Rater is designed for measuring of the Melt Flow Rate (MFR) and Melt Volume Rate (MVR) conforms to ISO 1133 and ASTM D1238 in fully automated mode.
This machine follows a sequential operation from the loading of materials, testing, data processing to the cleaning of barrel and performing the next test all on its own.
This tremendously reduces the workload of the user who can go on to perform other job functions after loading in the samples.
Specifications
Model
D-M

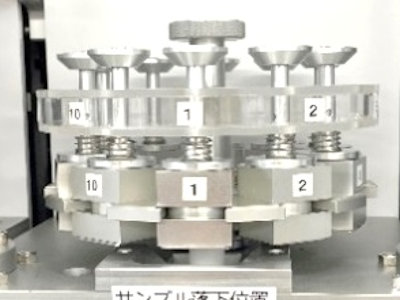

Sample cups
10 (Standard)

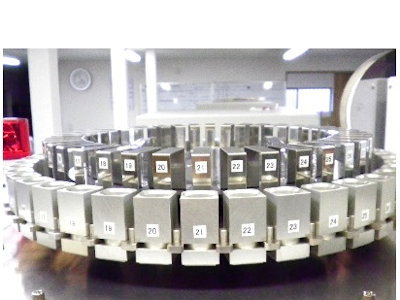

40 (Optional)
Temperature range
max. 300°C
Test loads
0.325, 2.16, 5.0, 10.0kg
Sample feeding
Automatic

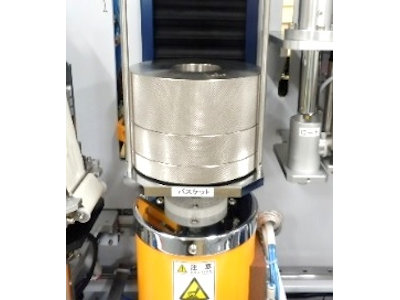

Weight lifting
Automatic
Residue emptying
Automatic

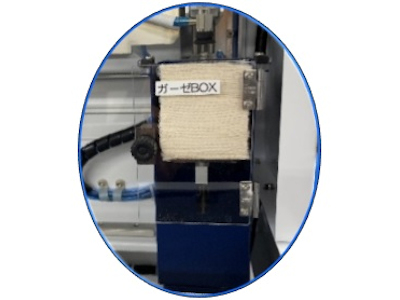

Cylinder cleaning
Automatic

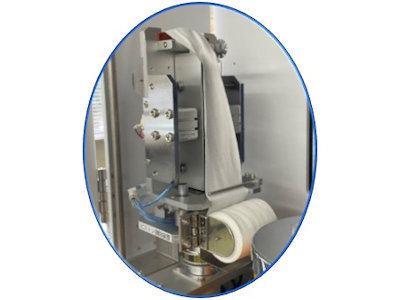

Piston cleaning
Automatic
Orifice (Die) cleaning
Automatic
Data processing unit
Provided (PC & Software)
Option

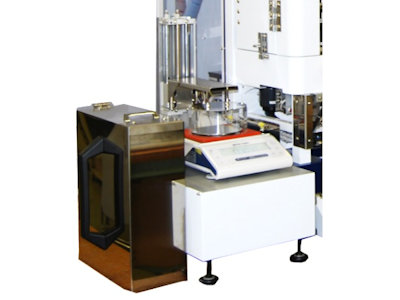

Method A automatic measurement unit
Electric heating type sample drying device (Oven)

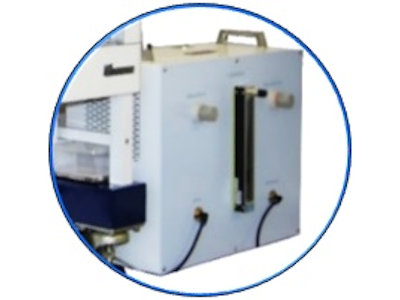

Dry air supply unit for sample purging
Automatic load changing unit
Power supply
Single-phase, AC100V, 50/60Hz, 1.5kVA
Compressed air requirement
0.6MPa
Dimensions
W900 × D700 × H1060mm
Weight
Approx. 320kg
Related standards
ISO 1133
Plastics-Determination of the melt mass-flow rate (MFR) and melt volume-flow rate (MVR) of thermoplastics
ASTM D1238
Standard Test Method for Melt Flow Rates of Thermoplastics by Extrusion Plastometer
