Universal/Tensile Testing Machine | Strograph™-VG (20kN) | 260-VG/VGS

  • VG (with optional bench) VG (with optional bench)

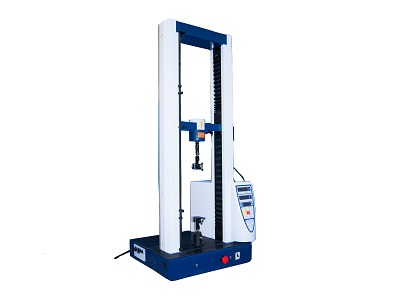

  • VGS VGS
  • VG (with optional bench)
  • VGS

Universal/Tensile Testing Machine | Strograph™-VG (20kN) | 260-VG/VGS

Universal Testing Machine (20kN max)

VG line is a universal testing machine with a maximum force capacity of 20kN which is suitable for testing tensile, compression, bending,  peeling, friction etc. of various kinds of materials such as plastics, film,  elastomers, textiles etc.



A wide range of options such as specimen grips, extensometers etc. are available.



Plastics
ISO 527-2 (JIS K 7161-2) Plastics — Determination of tensile properties
Part 2: Test conditions for moulding and extrusion plastics
ISO 178 (JIS K 7171) Plastics — Determination of flexural properties
ASTM D 638 Standard Test Method for Tensile Properties of Plastics
ASTM D790 Standard Test Methods for Flexural Properties of Unreinforced and Reinforced Plastics and Electrical Insulating Materials



Films and sheets
ISO 527-3 (JIS K 7127) Plastics — Determination of tensile properties — Part 3: Test conditions for films and sheets
ISO 8295 (JIS K 7125) Plastics−Film and sheeting− Determination of the coefficients of friction
ISO 6383-1 (JIS K 7128-1) Plastics−Film and sheeting−Determination of tear resistance −Part 1：Trouser tear method
JIS Z 1702 Polyethylene films for packaging



Rubber
ISO 37 (JIS K 6251) Rubber, vulcanized or thermoplastic — Determination of tensile stress-strain properties
ISO 34-1 (JIS K 6252-1) Rubber, vulcanized or thermoplastic-Determination of tear strength- Part 1: Trouser, angle and crescent test pieces



  VG VGS
Load capacity 20kN max. 5kN max.
Crosshead travel

(when no grips are fitted)

 1100mm 830mm
Test speed 0.0005 – 1000mm/min. (VG20F: 500mm/min. max.) 0.0005 – 1000mm/min.
Electrical Single-phase, AC100V, 50/60Hz, 0.8kVA

(or specify)

 Single-phase, AC100V, 50/60Hz, 0.7kVA

(or specify)
Dimensions W730 × D470 × H1630mm W630 × D470 × H1330mm
Net weight (approx.) 130kg 105kg



PDF

Related Products

Specimen Punching Machines (Hollow Die Punches) | 222/291/894

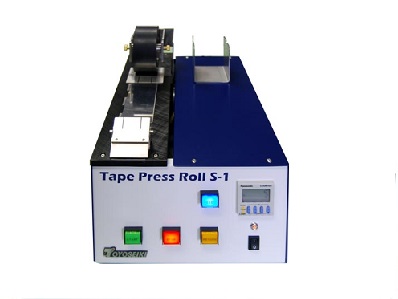

Tape Press Roll | 278
