A punch for punching test pieces from rubber or soft material sheets.

You can choose from the following 3 types.

• Lever type (No.894)
• Handle type (No.291)
• Pneumatic type (No.222)



No.894 Lever type Press Cutter

---

Press force	5kN
Stroke	Approx. 20mm
Boss	∅13mm
Dimensions	W240 × D400 × H680mm（Including handle）
Weight	Approx. 23kg

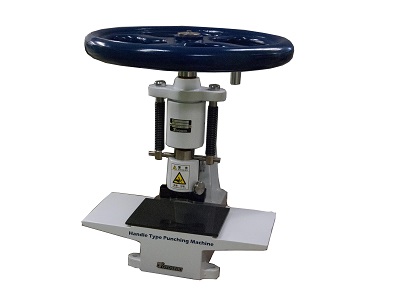

No.291 Specimen Punching Machine (Handle type)

---

Boss	∅24mm
Dimensions	W450 × D450 × H530mm
Weight	Approx. 53kg

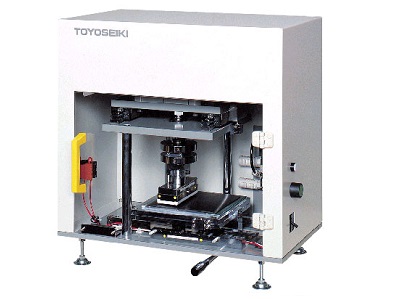

No.222 Specimen Punching Machine (Pneumatic type)

---

Power supply	Single-phase, AC100V, 50/60Hz, 1A
Compressed air	0.5MPa
Dimensions	W500 × D300 × H500mm
Weight	Approx. 50kg



Blade cutter (Die)

Features

• Replaceable
• High elasticity sponge rubber ejector
• Safety, because blade is covered with ejector sponge.
• No ejecting mark on the sample.
• Die for variety kinds of standard (ISO, JIS, ASTM) available
• 1 piece of spare blade included
