气体・水蒸气透过率测试仪 | 571/572

Gas Transmission Rate Tester | 571

The Gas Transmission Rate Tester (GTR Tester) measures gas transmission rate (gas barrier property) of packaging materials such as plastic films.



Measurement of gas transmission rate of polymer films such as plastic films, etc. is important because, for example in case of packaging materials, preservation of the content of a package considerably depends on the gas barrier property of the packing material.



Recently gas transmission rate measurement is being used in new fields such as functional polymer films.



ISO 15105-1 Plastics — Film and sheeting — Determination of gas-transmission rate — Part 1: Differential-pressure methods
ISO 2782-1 Rubber, vulcanized or thermoplastic — Determination of permeability to gases — Part 1: Differential-pressure methods
ISO 7229 Rubber- or plastics-coated fabrics — Measurement of gas permeability
ASTM D1434-23 Standard Test Method for Determining Gas Permeability Characteristics of Plastic Film and Sheeting
JIS K 7126-1 Plastics-Film and sheeting-Determination of gas-transmission rate- Part 1 : Differential-pressure method
JIS K 6275-1 Rubber, vulcanized or thermoplastic- Determination of permeability to gases-Part 1: Differential pressure method
JIS K 6404-3 Testing methods for rubber- or plastics-coated fabrics- Part 3: Determination of physical properties (Application)



Features

– An automatic valve is used to realize fully automatic measurement. (No need for conventional manual valve operation)

– Many kinds of gases can be measured. (Differential pressure method)

– Additional expansion is possible by modular design.

– Since measurement is performed while data is stored, data can be analyzed even during testing.

– Mail transmission function allows you to receive a message when an error occurs or the test ends.

– Allows analysis of diffusion coefficient and solubility coefficient (Optional)

– High sensitivity vacuum pressure gauge of reading accuracy 0.25% is employed.

– Specimen table supports two different sizes of specimen.

– Performs temperature error correction of transmission gas.

Model CR1 CR3 CT1 CT3
Number of specimen 1 3 1 3
Temperature range Room temperature 10 to 90°C (Hot water circulation)
Dimensions of specimen
  • 50 × 50mm（Measuring cell: ∅30mm, Transmission area: 707mm²）
  • 90 × 90mm（Measuring cell: ∅70mm, Transmission area: 3848mm²）
GTR measurement range

(To be selected type A or B upon order)
  • Type A: 4.5×10-15〜4.5×10-12 [mol/(m2・s・Pa)]　（0.1 〜100[fm/(Pa・s)]）
  • Type B: 4.5×10-14〜4.5×10-11 [mol/(m2・s・Pa)]　（1 〜1000[fm/(Pa・s)]）
Test gas
  • Oxygen
  • Nitogen
  • Carbon dioxide
  • Air
  • Hydrogen (Optional) etc.
Test gas pressure 0 to 200kPa
Measurement items
  • Gas transmission rate
  • Gas transmission coefficient
  • Diffusion coefficient, Dissolution coefficient (Optional)
Data processing unit Provided as standard (PC, Software)
Options
  • Additional measurement module, Room temperature model (MCR1）
  • Additional measurement module, Temperature control model (MCT1）
  • Diffusion coefficient measurement device (CKK-1・CKK-3）
  • Hydrogen gas measurement unit（CH）
Power requirement
  • Main unit: Single-phase, AC100V, 50/60Hz, 0.5kVA
  • PC: Single-phase, AC100V, 50/60Hz, 0.3kVA
  • Vacuum pump: Single-phase, AC100V, 50/60Hz, 0.6kVA
  • Warm water circulation bath: Single-phase, AC100V, 50/60Hz, 1.5kVA
  • With hydrogen gas measurement option: Three-phase, AC200V, 50/60Hz, 1.0kVA
Compressed air requirement 0.4MPa
Dimensions
  • W550 × D560 × H470mm（CR1, CT1）
  • W800 × D560 × H470mm（CR3, CT3）
Weight
  • Approx. 50kg（CR1, CT1）
  • Approx. 70kg（CR1, CT1）

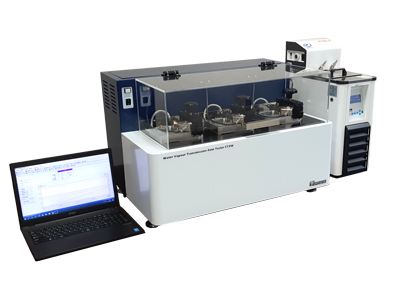

Water Vapor Transmission Rate (WVTR) Tester | 572

The Water Vapor Transmission Rate (WVTR) Tester measures the water vapor permeability or water vapor permeability coefficient of packaging materials such as plastic film.



Measures water vapor permeability and water vapor permeability coefficient of plastic films, etc. using the differential pressure method.



ISO 15106-5 Plastics — Film and sheeting — Determination of water vapour transmission rate — Part 5: Pressure sensor method



Features & Benefits

● Measuring section supports two types of specimen sizes. (measuring section diameter ∅ 30 mm and ∅ 70 mm)

● Modularization of the measuring section allows for additional modules to be added.

● High-precision vacuum pressure gauge with a reading accuracy of 0.25.

● E-mail function allows messages to be received when an error occurs or a test is completed.





CT1W CT3W
Number of specimen 1 3
Measurement range 20 to 85°C, 80 to 90% RH (Depends on the combination)
Temperature control Constant temperature water circulation (by chiller)
Specimen dimensions
  • 50×50mm (Meas. section ∅30mm, through area 707mm²)
  • 90×90mm (Meas. section ∅70mm, through area 3848mm²)
Water vapour transmission measurement range
  • Type A: 0.001 to 1.000 [g/(m²・24h)]
  • Type B: 0.01 to 100.00 [g/(m²・24h)]

Note: Vacuum pressure gauge: Accuracy 0.25% of reading
Supply gas 0.5MPa (Gas cylinder recommended)
Medium for water vapour Water (Class A1 or better specified in JIS K 0557)
Measurement item
  • Water vapour transmission rate [g/(m²・24h)]
  • Water vapour permeability coefficient (g・mm/(m²・24h)]
Data processing & control PC
Option N/A Additional measurement module, model MCT1W (1 test station)

Max. 2 additional units possible
Power supply
  • Main unit: Single-phase, AC100V, 50/60Hz, 5A
  • PC: Single-phase, AC100V, 50/60Hz, 3A
  • Vacuum pump: Single-phase, AC100V, 50/60Hz, 6A
  • Chiller: Single-phase, AC100V, 50/60Hz, 15A
Compressed air 0.4MPa
Dimensions W550 × D560 × H470mm W800 × D560 × H470mm
Weight Approx. 50kg Approx. 70kg
