Test methods	Specimen support/fixture methods		Testing standards
Charpy impact test	Fix both ends of the specimen to a horizontal support and impact the back of the notch (notch) with a hammer.		ISO 179 (JIS K 7111) ASTM D6110
Izod impact test	Fix the end of the specimen in a vertical cantilevered beam and impact it with a hammer from the notched direction.		ISO 180 (JIS K 7110) ASTM D256



Related standards

---



Charpy	ISO 179 (JIS K 7111) ASTM D256
Izod	ISO 180 (JIS K 7110) ASTM D256
Tensile-impact	ISO 8256 (JIS K 7160) ASTM D1822



Line up

---

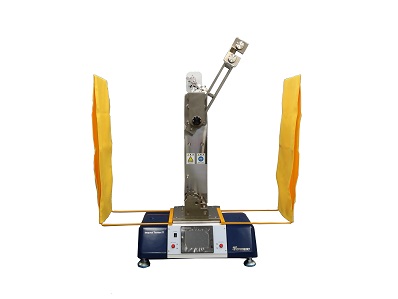

■ Pendulum Impact Tester | 556

■ Temperature-controlled Pendulum Impact Tester | 526





■ Pendulum Impact Tester | 556

---

Features

---

– Digital display type eliminates abrasion loss error of the needle and reading error by the measurer.

– Charpy impact test, Izod impact test, tensile impact test, etc. can be performed by changing the hammer and specimen support.

– Easy operation with color LCD touch panel. Average, maximum, minimum, coefficient of variation, and standard deviation of impact values can be displayed and saved.

– Measurement data can be saved on a PC*. (*Optional dedicated data processing software is required.)

– Hammer release* is available at the touch of a button. No individual differences in hook release and improved reproducibility. (*Optional)

– Instrumentation system* selectable. (*Optional. Charpy impact test and in-base method tensile impact test only)

– Specimen support stand* with positioning can be selected. Specimens can be set easily and precisely. (*Option for Charpy impact test)

– Safety cover* (without or with top panel) selectable (*Optional)

Main unit

---



Model	IT
Test methods	Charpy impact test Izod impact test Tensile impact test Impact peeling test
Hammer capacity	Charpy impact test: 0.5 to 15J Izod impact test: 0.5 to 22J Tensile impact test: 1 to 15J
Hammer lifting angle	150°
Power supply	Single-phase, AC100 to 240V, 50/60Hz, 0.1kVA
Dimensions	W600 × D360 × H1000mm
Weight	Approx. 100kg

Hammers

---

(1) Charpy impact test

ISO 179

Hammer capacity	Model	Impact velocity	Impact blade tip
0.5J / 1J*	JCH05J	2.9m/sec.	R2mm、30°
2J / 4J*	JCH2J
5J	JCH5J
7.5J / 15J*	JCH75J	3.8m/sec.



ASTM D6110

Hammer capacity	Model	Impact velocity	Impact blade tip
1J / 2J*	ACH1J	3.46m/sec.	R3.17mm、45°
3J / 6J*	ACH3J
8J / 15J*	ACH8J



(2) Izod impact test

ISO 180

Hammer capacity	Model	Impact velocity	Impact blade tip
0.5J / 1J*	JIZ05J	3.5m/sec.	R0.8mm
1J	JIZ1J
2.75J / 5.5J*	JIZ27J
11J / 22J*	JIZ11J



ASTM D256

Hammer capacity	Model	Impact velocity	Impact blade tip
1J / 2J*	AIZ1J	3.46m/sec.	R0.8mm
3J / 6J*	AIZ3J
8J / 15J*	AIZ8J

*Additional weight

Specimen Support/Fixture

---

(1) Charpy impact test

JIS K 7111（ISO 179）

Description	Model	Span
Charpy, ISO 179 specimen support (Standard)	JCHBAS	62mm
Charpy, ISO 179 specimen support with centering unit (Optional)	JCBAST



ASTM D6110

Description	Model	Span
Charpy, ASTM D6110  specimen support	ACHBAS	101.6mm



(2) Izod impact test

ISO 180 / ASTM D25

Description	Model	Distance between the top of the specimen fixture and the impact blade
Izod, specimen fixture	IZBASE	22mm

Options

---



Hammer release device
Curtain for litter control
Safety cover
Safety cover (Full cover type)
Anchor weight
Hammer brake
Charpy specimen support with centering unit
Small printer
Data acquisition software

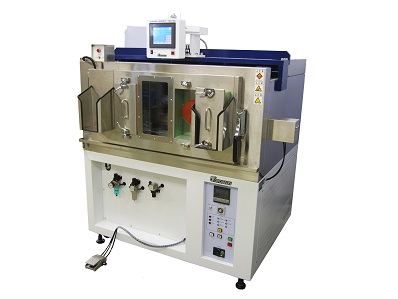

■ Temperature-controlled Pendulum Impact Tester | 526

---

The Temperature-controlled Impact Tester is a pendulum impact tester which measures absorbed impact energy of plastic specimens based on Izod, Charpy and Tensile-impact strength method at low temperature.



Charpy	ISO 179 ASTM D256
Izod	ISO 180 ASTM D256
Tensile-impact	ISO 8256 ASTM D1822



Model	DG-40
Cooling method	Refrigerator
Temperature range	-40 to +40°C
Hammer capacity	15J max. (Charpy) 22J max. (Izod)
Test results	Lifting angle Absorbed enegy Absorbed energy per unit sectional area
Power supply	Three-phase, AC200V, 50/60Hz, 8.7kVA (or specify)
Dimensions	W1300 × D1200 × H1600mm
Weight	Approx. 600kg
