回弹力测试仪【对于弹性体和橡胶的测试】 | 221/231/232

回弹力测试仪【对于弹性体和橡胶的测试】 | 221/231/232

● Schob 型回弹力测试仪用于评估橡胶的回弹弹性，符合 ISO 4662 标准。
● Tripsometer 型回弹力测试仪使用小试样测量弹性体等的回弹弹性。 也可选配温度条件。



ISO 4662 Rubber, vulcanized or thermoplastic — Determination of rebound resilience



Schob type Rebound Tester (Manual operation model) | 232

Model SB-M1
Diameter of impact hemisphere ∅12.5mm
Specimen diameter ∅29.0mm
Specimen thickness 12.5mm
Power supply Single-phase, AC100 to 240V, 50/60Hz, 0.1kVA
Dimensions W275 × D415 × H450mm
Weight Approx. 30kg

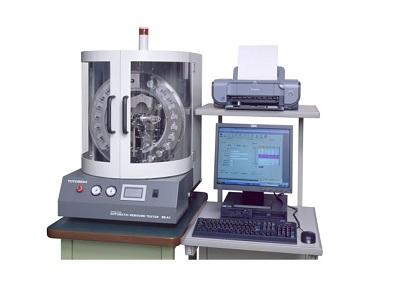

Schob type Automatic Rebound Tester (Automated operation model) | 231

Model SB-A1
Hammer unit
  • Diameter of impact hemisphere: ∅12.5mm
  • Impact force: 0.25kg
  • Drop angle: 90°
  • Impact velocity: 1.88m/s
  • Release system: Electromagnet
Specimen supply unit
  • System: Revolver type
  • Number of specimen: 20 pieces
  • Specimen diameter: ∅29±0.5mm
  • Specimen thickness: 12.5±0.5mm
  • Specimen holding force: 200±20N (adjustable)
Data processing unit Provided as standard feature
Power supply Single-phase, AC100V, 50/60Hz, 0.2kVA
Compressed air requirement 0.4 to 0.7MPa
Dimensions W550 × D700 × H880mm
Weight Approx. 100kg

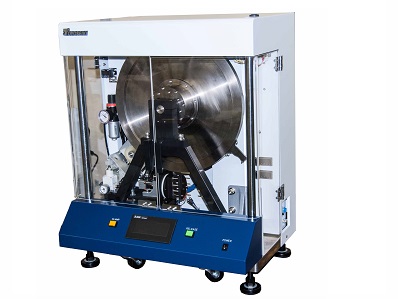

(Tripsometer method) Resilience Tester | 221

Model A
Size of disk ∅419mm × thickness14.3mm
Hammer tip Steel ball, ∅4mm
Specimen 8×50mm, thickness 4mm
Temperature RT to 70°C
Power supply Single-phase, AC100V, 50/60Hz, 7A
Demensions W600 × D450 × H760mm
Weight Approx. 150kg
