Features

● Advanced digital model that supports testing with a variety of highly convenient assist functions.

● Stable clamping pressure is applied to sample by compressed air system.

● Feeding rate of pressure applying liquid (glycerin) is stable.

● Safety mechanism is used in sample clamping unit.

● The mechanism is so designed that height of the rubber diaphragm can be adjusted without supplementing glycerin.

● When some miss-operation such as operation without a sample occurs, the auto return mechanism operates.

● Suitability of expansion under specified pressure of rubber diaphragm can be automatically checked by means of a jig supplied with the machine.

● Hard rubber diaphragm can be automatically conditioned or adjusted by means of supplied jig.

● Equipped with cross mode to indicate strength of rubber diaphragm at the time of determining true value of bursting strength of sample. (JIS L 1018, L 1096)

● Data can be printed out by printer or communicated through RS232C interface. (Optional)

■ Mullen type Burst Tester (High pressure model)

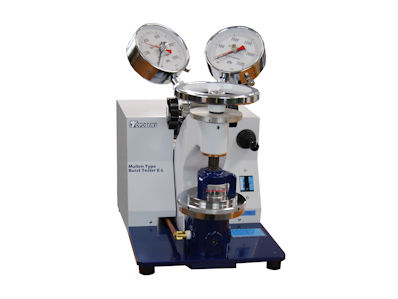

Model	Digital model (M2-HD)	Analog model (E-H)
Specimen clamp	Automatic operation (Pneumatic)	Manual operation (rotation handle)
Tearing strength measurement	Pressure sensor (Digital display)	Bourdon tube pressure gauge (Analog gauge)
Operation to soften rubber membrane	Automatic	N/A
Bursting strength	7000kPa max.	Analog pressure gauge (select 2 types from below) 2500kPa max. 5000kPa max. 7000kPa max. *Recommended use at 25-75% of full scale
Glycerin feed rate	170±15ml/min.
Clamp plate	Upper: OD∅100mm, ID∅31.5mm Lower: ID∅: ∅31.5mm, Thickness 5.6mm
Safeguards	Finger protection mechanism Glycerin scattering prevention Overload protection Drive safety limiters Leakage breaker	Leakage breaker

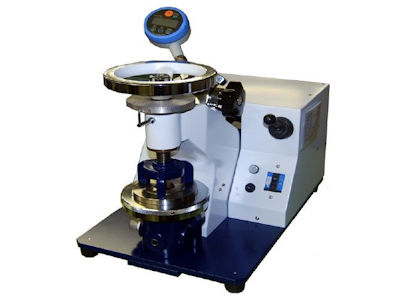

Options	Mini printer Data processing software	Digital type pressure gauge (500kPa, 1000kPa, 5000kPa max.)
Power supply	Single-phase, AC100V, 50/60Hz, 0.5kVA
Compressed air	0.4 to 0.6MPa	—–
Dimensions	W350 × D380 × H500mm	W300 × D600 × H480mm
Weight	Approx. 70kg	Approx. 50kg

■ Mullen type Burst Tester (Low pressure model)

Model	Digital model (M2-LD)	Analog model (E-L)
Specimen clamp	Automatic operation (Pneumatic)	Manual operation (rotation handle)
Tearing strength measurement	Pressure sensor (Digital display)	Bourdon tube pressure gauge (Analog gauge)
Operation to soften rubber membrane	Automatic	N/A
Bursting strength	2000kPa max.	Analog pressure gauge (select 2 types from below) 500kPa max. 1000kPa max. 2500kPa max. *Recommended use at 25-75% of full scale
Glycerin feed rate	95±5ml/min. (JIS P 8112 specification) 98±4ml/min. (JIS L 1096 specifications)
Clamp plate	<Upper> OD∅70mm, ID∅30.5mm (JIS P 8112 specifications) OD∅70mm, ID30.48mm (JIS L 1096 specifications)   <Lower> ID∅: ∅33.1mm, Thickness 3.5mm (JIS P 8112 specifications) ID∅: ∅31.5mm, Thickness 3.18mm (JIS L 1096 specifications)
Safeguards	Finger protection mechanism Glycerin scattering prevention Overload protection Drive safety limiters Leakage breaker	Leakage breaker
Options	Mini printer Data processing software	Digital type pressure gauge (500kPa, 1000kPa, 5000kPa max.)
Power supply	Single-phase, AC100V, 50/60Hz, 0.3kVA
Compressed air	0.3 to 0.6MPa	—–
Dimensions	W350 × D380 × H500mm	W300 × D540 × H480mm
Weight	Approx. 70kg	Approx. 50kg
