Hand Truder | 667

The Hand Truder pelletizes a small amount of samples in interminate from and powder or forms them into small dumbbell test pieces through the replacement of pelletizer with mold equipped to the bottom of heating furnace unit.



■Molder



Temperature range RT+20 to 400°C
Cylinder ∅12 x L130mm (by replacement of the inner cylinder)
Sample capacity Max. 14cm³
Operation of injection Manual (Up-down operation of lever)
Mold (Standard) Small size test piece (JIS K 7162-1BA) etc.
Dimensions W603 x D866 x H1175mm
Mass (Approx.) 110kg
Power supply Main unit: Single-phase, AC100V, 50/60Hz, 1.2kVA

Temp. controller for mold: Single-phase, AC100V, 50/60Hz, 0.5kVA

(or specify)

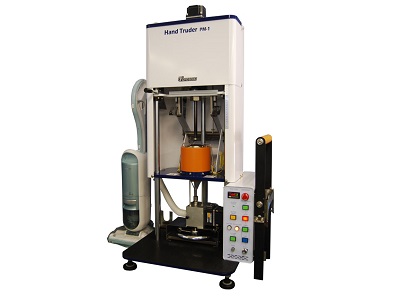

■Pelletizer



Temperature range RT+20 to 400°C
Cylinder ∅20 × L130mm
Sample capacity Max. 40cm³
Size of pellet Approx. ∅2.5 × 2.5mm (Length can be changed)
Dimensions W603 × D866 × H1175mm
Mass (Approx.) 110kg
Power supply Main unit: Single-phase, AC100V, 50/60Hz, 1.2kVA

Cleaner: Single-phase, AC100V, 50/60Hz, 0.8kVA

(or specify)
