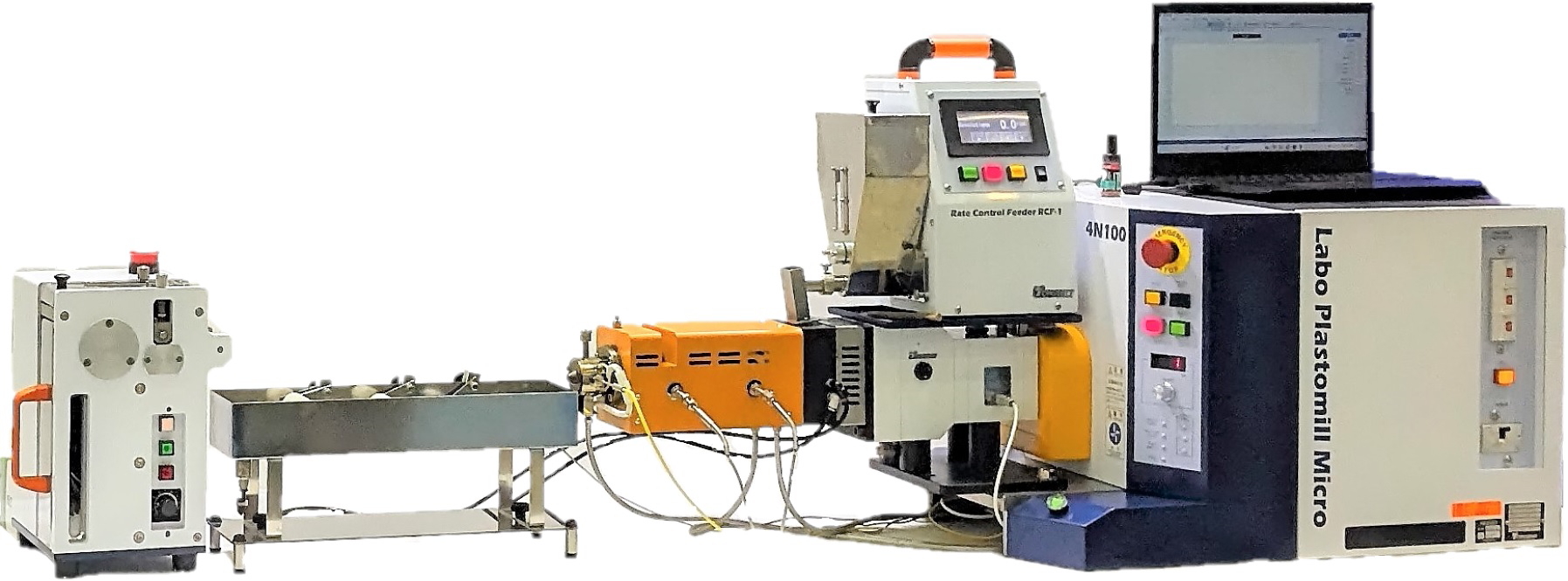

Mini-Torque Rheometer | Labo Plastomill™ Micro | 666

Benchtop measuring mixers & extruders system

The Labo Plastomill™ Micro is a bench-top experimental system for evaluating kneadability and extrusion properties of very small quantities of laboratory synthesized samples, nanoparticle samples (such as carbon nanotubes, silica, titanium oxide), specialized and expensive samples, and composite materials in nature etc.



Features

– Torque (current value conversion), resin temperature, and pressure can be measured. (pressure transducer is option)
– The data can be saved to the testing software.
– Safety features including torque, pressure, and temperature limiters and mixer disassembly safety circuit etc.



Base Unit (Drive unit)



Model 4N100
Max. torque 40Nm
Max. speed 100rpm
Torque detection By load cell
Safety devices Torque limiter, temperature limiter, emergency stop switch, mixer disassembly safety circuit, leakage breaker, SSR abnormal detection, overheat detection
Power supply Three-phase, AC200V, 50/60Hz, 5.2kVA (or specify)
Compressed air requirement 0.5MPa
Dimensions W470 x D750 x H440mm (base unit)
Weight (approx.) 62kg (base unit)



Measuring Mixer (KF6V small segment mixer)







Model KF6V
Chamber capacity (approx.) 5 or 6cm³
System Intermeshing type co-directional rotation
Max. speed 300rpm (3x speed)
Max. torque 40Nm
Temperature range RT+100°C to 350°C (water cooling is possible under 100°C)
Heating zones • Heating: 3 zones (cartridge heater)

• Cooling: 1 zone (#2 block)

with temperature trasducer
Blade shape 2 lobe disc, 5-pieces combination type

• KH6HB – high shear blades (standard feature)

• KF6LB – low shear blades (option)
Sample insertion port ∅15mm
N2 purge Nitrogen gas can be supplied from the top of the ram
Material SUS440C
Safety feature Shear pin
Power supply Single-phase, AC100V, 50/60Hz, 1.5kVA
Dimensions W290 x D260 x H370mm
Weight (approx.) 20kg



Single-screw Extruder (D1220)

Model D1220
Screw diameter 12mm
L/D 20
Max. temperature 350°C
Heating system Electric
Heating zone (cylinder) 2
Die head • Strand die (∅2.5mm x 1)…standard feature

• T-die (W60 or W80mm)…option

• Tube die (Inner dia 6mm, outer dia 8mm)…option
Standard screw Full flight (CR2.5)

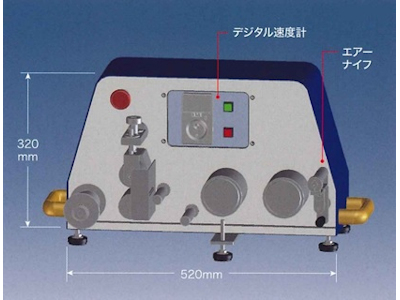

Small Film Take-off Unit (FT2B8)

Note: Base unit shown is old generation model



Model FT2B8
Roll diameter ∅80mm
Roll width 80mm
Take-off speed 0.3 to 5m/min.
Temperature  Max. 80°C
Power supply Single-phase, AC100V, 50/60Hz, 3A
Dimensions W630 x D360 x H360mm
Weight (approx.) 36kg





Small Pelletizer (MPETEC1)



Model MPETEC1
Take-off speed 2 to 8m/min.
Pellet length 3mm
Water bath approx. 1L
Temperature  Max. 80°C
Power supply Single-phase, AC100V, 50/60Hz, 3A
Water supply 0.1MPa, 3L/min.
Dimensions W260 x D345 x H380mm (main unit)

W450 x D150 x H220mm (water bath)
Weight (approx.) 10kg (main unit)

2kg (water bath)
