Mixer heating block, that is the sample kneading part of Labo Plastomill, contains 2 kneading blades rotating in same direction or two kneading blades rotating in different directions and resin temperature sensors.
Mixing and kneading of sample filled in the mixer proceeds as it receives heat and shear from the blade and its state of melting, dispersion, distribution, steadiness, deterioration, curing reaction, cross-linking, heat generation, etc. changes in various forms according to the characteristics of the sample.
Since these changes in state appear as change in the torque acting mechanically on the blade, the behavior of torque and resin temperature are continuously detected and displayed on the monitor.
In mixer test, processing characteristics such as gelling characteristic, dynamic thermal stability, curing characteristic, dispersion characteristic, etc. can be determined as index.
Moreover, since mechanically provided energy (MH/m3) consumed per unit volume is calculated, information regarding mixer scale up and comparison among samples can also be obtained. The middle size mixer (100cm3 or larger) is generally used to collect large quantity of kneaded substances as secondary sample in addition to conducting above-mentioned tests.
| ■Example of application
Thermoplastics -Relative melt viscosity -Dynamic thermal stability -Thermoplastic characteristic (PVC) -Dispersion of magnetic material, metallic powder, reinforcement, etc. -Nano particle dispersion evaluation test -Ceramic wetting characteristic -Consumed energy -Effect of additives such as stabilizer, lubricant, plasticizer, compatibility agent, etc. with regard to above-mentioned items. -Compounding, pelletization, etc.
Elastomers -Relative melt viscosity -Dynamic curing characteristic -Carbon black dispersion -Nano particle dispersion evaluation test -Effect of curing agent, kind of carbon, filler, etc. with regard to above-mentioned items. -Consumed energy -Sample kneading for evaluation (JIS K 6299) -Compounding, etc.
Thermosetting resins -Relative melt viscosity -Dynamic curing characteristic -Consumed energy -Effect of curing accelerator, retarding agent, filler, etc. on above mentioned items.
Paints -Oil absorption characteristic of paints |

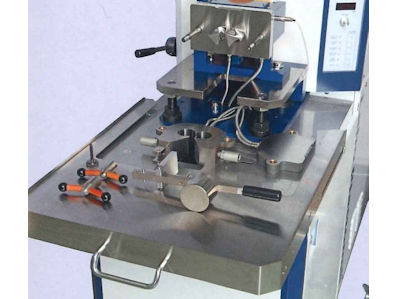

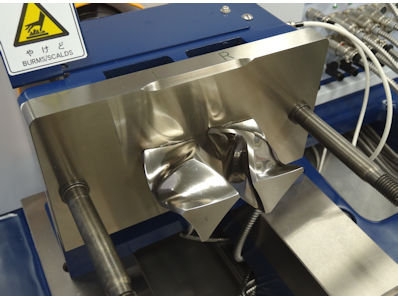

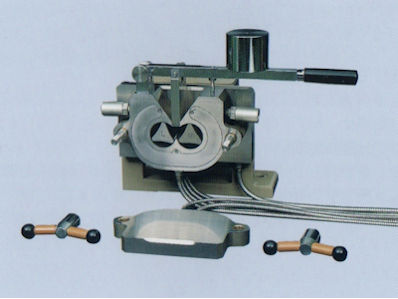

Roller type blades mixers
| Model | R60 | R100 | R200 | R500 |
| Chamber capacity (approx.) | 60cm³ | 100cm³ | 200cm³ | 500cm³ |
| Blade revolution ratio | 2:3 |
|||
| Max. temperature | 250°C (Option: 400°C) |
|||
| Max. torque | 200Nm | 300Nm | 750Nm | 1000Nm |

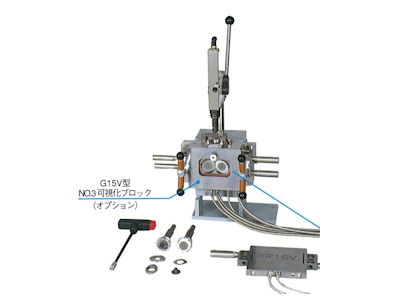

Segment mixers
– Heavy kneading test by means of intermeshing type co-rotary blades.

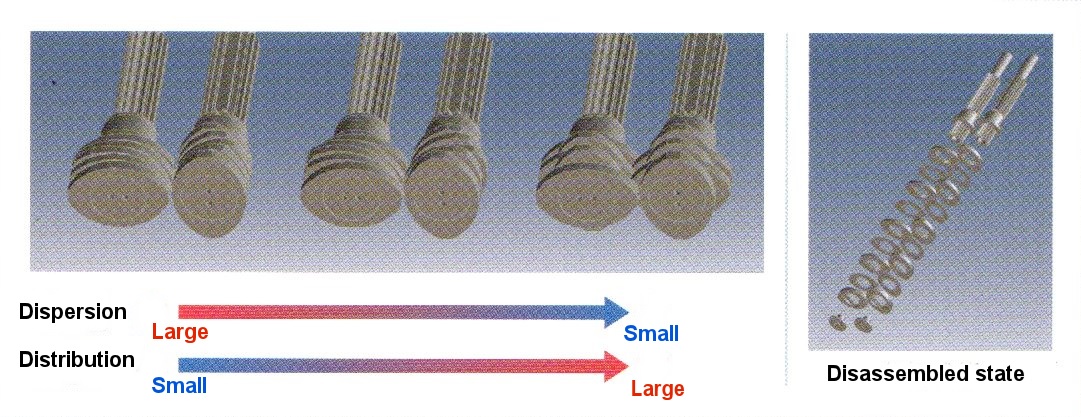

– Arbitary adjustment of heavy/light kneading by changing disk phase composition of blades.
– Disk phase of blade is possible to change.
| Model | KF6 / KF6V | KF15V | KF70V2 |
| Chamber capacity (approx.) | 6cm³ | 15cm³ | 70cm³ |
| Blade revolution ratio | 1:1 |
||
| Max. temperature | 350°C |
||
| Max. torque | 40Nm | 100Nm | 300Nm |

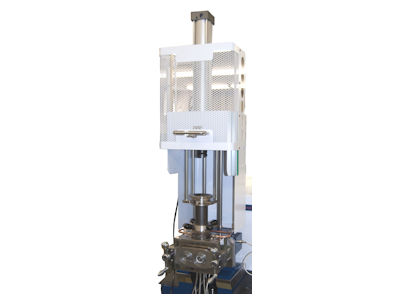

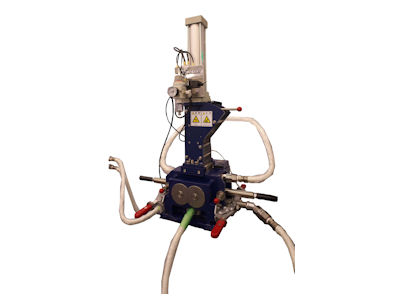

Mixers for elastomers (BB type mixers)
| Model | B75 | B250 / B250H | B600 / B600H |
| Chamber capacity (approx.) | 75cm³ | 250cm³ | 600cm³ |
| Blade revolution ratio | 7:8 |
8:9 | 7:8 |
| Heating system | Electric |
||
| Max. temperature | 250°C | 250°C (B250H: 400°C) | 250°C (B600H: 400°C) |
| Max. torque | 300Nm | 750Nm | 1000Nm |

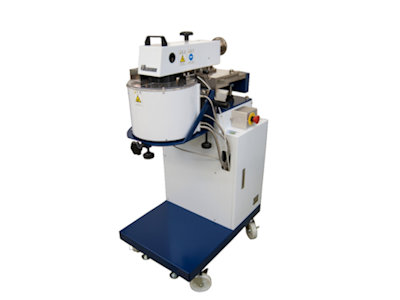

Planetary type Mixer
| Model | P600F |
| Chamber capacity (approx.) | 600cm³ |
| Main application |
|
| Heating system | Electric |
| Max. temperature | 150°C |
| Max. torque | 30Nm |

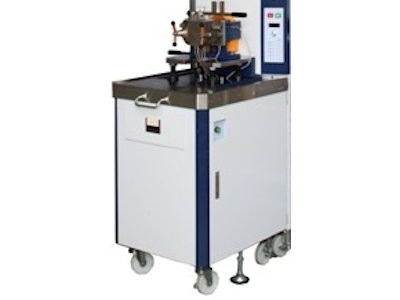

Dedicated mobile benches (to be selected mandatory)
| Mobile bench for mixer | KMIX2 | ||
| KMIX1 | |||
| Mobile bench for planetary mixer | KPMIX2 | ||
| KPMIX1 | |||
| Mobile bench for oil heating type BB mixer | KBR |
