HDT & Vicat Testing Machine / HDT Tester | 533
HDT & Vicat Testing Machine / HDT Tester | 533
ISO 75, ISO 306, ASTM D648, ASTM D1525
The HDT/Vicat Tester uses a 2 steps split loading system to ensure simultaneous application of the load on the specimens, applying a consistent fixed stress to the specimens.
Using their patented design of the stirring and circular flow, Toyoseiki HDT Tester is able to ensure the temperature uniformity of the oil bath.
Equipped with high precision LVDT, and Pt100 temperature sensors at each station, Toyoseiki’s HDT Tester is able to provide consistent, stable results when measuring the temperature as the limiting distortion is reached.
| DTUL | • ISO 75-1, 2
• ASTM D648 |
| VICAT | • ISO 306
• ASTM D1525 |
| ISO 75 | Plastics-Determination of temperature of deflection under load |
| ISO 306 | Plastics-Thermoplastic materials-Determination of Vicat softening temperature (VST) |
| ASTM D648 | Standard Test Method for Deflection Temperature of Plastics Under Flexural Load in the Edgewise Position |
| ASTM D1525 | Standard Test Method for Vicat Softening Temperature of Plastics |
Standard models
| Model | 3M-2W2 | 6M-2W2 | 6M-2KW |
| Number of stations | 3 | 6 | |
| Stirrer propeller | 1 | 2 | |
| Stirrer motor | 1 | 1 | 2 |
| Stirrer motor drive mechanism | Belt and pulley |
Direct drive motors | |
| Heat transfer medium | Silicone oil | ||
| Temperature range | Max. 300°C | ||
| Heating rate | 120°C/h, 50°C/h | ||
| Bending stress | 1.80MPa, 0.45MPa | ||
| LVDT resolution | 1/1000mm | ||
| Specimen support span | 64mm, 100mm | ||
| Movement of test stations | Motorized | ||
| Application of test weights | Motorized (simultaneously applied) | ||
| Specimen feeding | Manual operation | ||
| Power supply | Single-phase, AC220/230V, 50/60Hz, 3.2kVA | Single-phase, AC220/230V, 50/60Hz, 5.5kVA | |
| Cooling water requirement | 0.1 to 0.7MPa, 5L/min. or more | ||
| Dimensions | W720 × D630 × H1350mm | W1010 × D630 × H1350mm | W1010 × D630 × H1380mm |
| Weight (approx.) | 150kg | 180kg | |
Fully-automated models

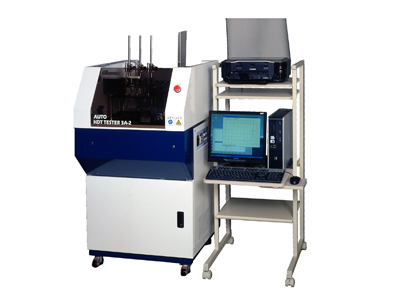

| Model | 3A-2W | 6A-2W |
| Number of stations | 3 | 6 |
| Heat transfer medium | Silicone oil | |
| Temperature range | Max. 300°C | |
| Heating rate | 120°C/h, 50°C/h | |
| Bending stress | 1.80MPa, 0.45MPa | |
| LVDT resolution | 1/1000mm | |
| Specimen support span | 64mm, 100mm | |
| Movement of test stations | Motorized | |
| Application of test weights | Motorized (simultaneously applied) | |
| Specimen feeding | Automatic | |
| Specimen magazine | 120 specimens (when 4mm height specimens are loaded) | 240 specimens (when 4mm height specimens are loaded) |
| Power supply | Single-phase, AC220/230V, 50/60Hz, 3.2kVA | Single-phase, AC220/230V, 50/60Hz, 5.5kVA |
| Cooling water requirement | 0.1 to 0.7MPa, 5L/min. or more | |
| Dimensions | W780 × D760 × H1540mm | W1080 × D760 × H1590mm |
| Weight (approx.) | 180kg | 210kg |
Spare parts
| LVDT |
| LVDT mounting base |
| Resistance temperature detector, Pt100 |
| Solenoid valve for pump |
| Stirrer motor |
| Temp. guard |
| Thermocouple for temp. guard |
| SSR for pump motor |
| SSR for heater |
| Magnetic contactor |
| CPU board |
| Power supply PCB |
| SSR PCB |
| Displacement PCB |
| Power supply for displacement PCB |
| Coupling for stirrer motor |
| Flow switch |
Spare parts (other than model 6M-2KW)
| Timing belt |
| Stirrer pulley, large (for propeller) |
| Stirrer pulley, small (for motor) |
