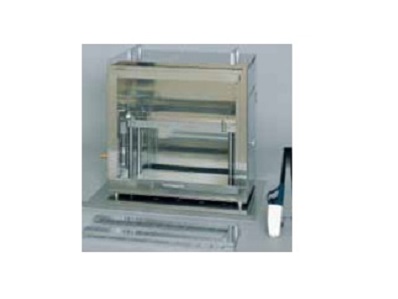

MVSS Flammability Tester | No.501-
Safety standards with regards to flammability of interior materials of automobiles are prescribed. The MVSS Flammability Tester is used to test flammability of such materials.
Specifications
Model | T | S |
Dimensions of specimen | Approx. 100×355mm | |
Power supply | Single-phase, AC100V, 50/60Hz, 0.1kVA (or specify) | N/A |
Dimensions | W500 × D400 × H600mm | W500 x D210 x H400mm |
Weight (Approx.) | 20kg | 13kg |
Related standards
JIS D 1201 | Road vehicles, and tractors and machinery for agriculture and forestry− Determination of burning behaviour of interior materials |
