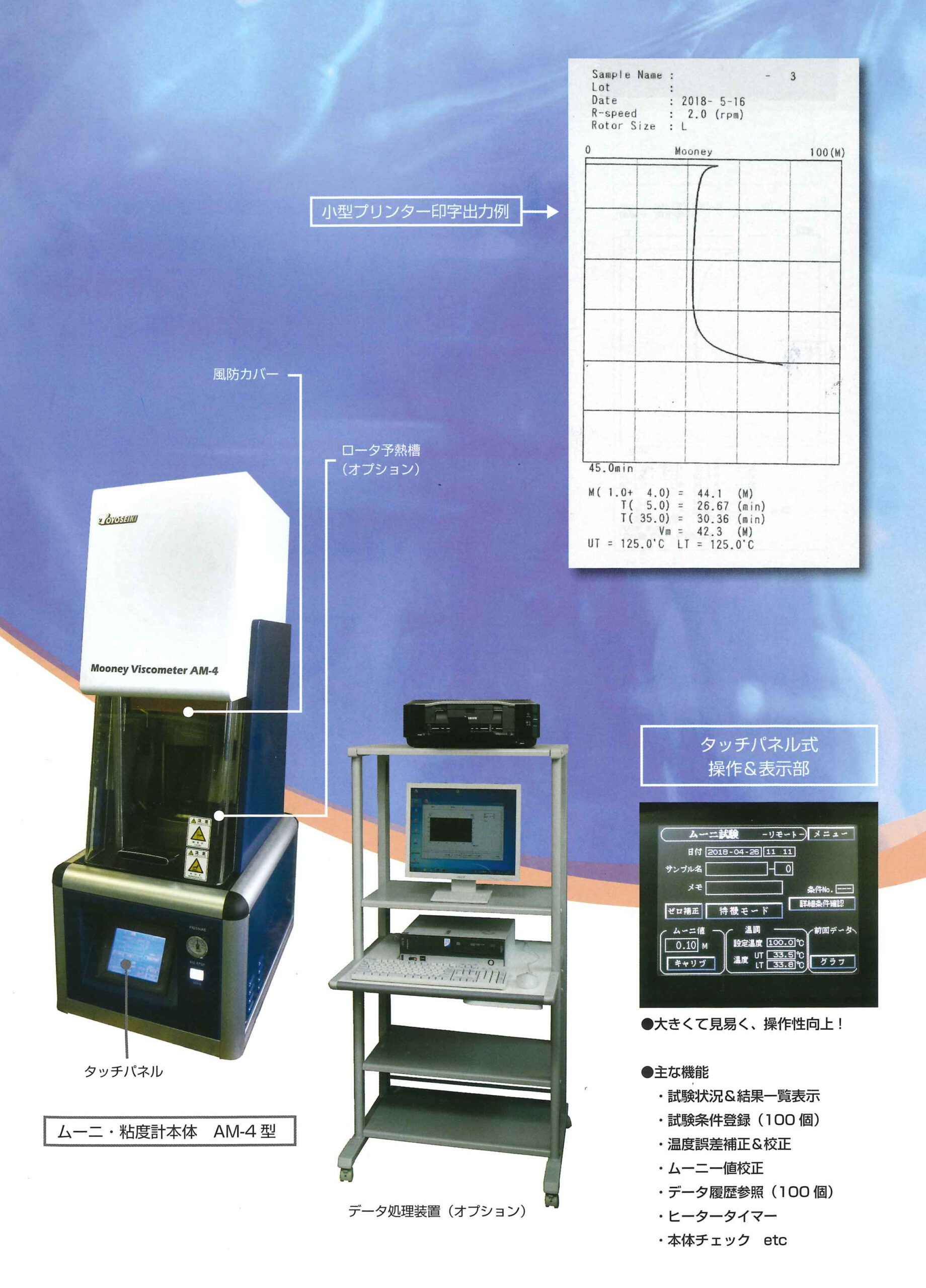

Mooney Viscometer | 275-AM-4

Mooney Viscometer | 275-AM-4

ISO 289, ASTM D1646 (AM-4 only. No related standards for RLM-4)

The Mooney Viscometer measures Mooney viscosity and Mooney scorch of un-vulcanized rubber according to ISO 289.



Accuracy & Calibration Management

● Temperature accuracy is ±0.3°C compensation with each error compensation function.

● Temperature sensor error, temperature amplifier error, etc. can be easily corrected on the LCD touch screen.

● Mooney values can be automatically calibrated with a built-in weight.



Improved functionality & operability

● You can register test conditions and pass/fail criteria.
● Operation is automatic except for registration recall and sample loading/unloading.
● Test results, data curves, and averages are printed on a small printer (optional).
● Recall of past test results (up to 100)
● Maintenance can be performed quickly by the check function of the main unit.



Safety

● Equipped with overload and overheat protection devices.

● When the windshield cover is closed, the hot plate is lowered and the test starts, ensuring temperature stability and safety.



Economy

● One PC (optional) can process data from multiple testers (Mooney Viscometer and MDR).





ISO 289-1 to 4 • Rubber, unvulcanized — Determinations using a shearing-disc viscometer — Part 1: Determination of Mooney viscosity

• Rubber, unvulcanized — Determinations using a shearing-disc viscometer — Part 2: Determination of pre-vulcanization characteristics

• Rubber, unvulcanized — Determinations using a shearing-disc viscometer — Part 3: Determination of the Delta Mooney value for non-pigmented, oil-extended emulsion-polymerized SBR

• Rubber, unvulcanized — Determinations using a shearing-disc viscometer — Part 4: Determination of the Mooney stress-relaxation rate
ASTM D1646 Standard Test Methods for Rubber—Viscosity, Stress Relaxation, and Pre-Vulcanization Characteristics (Mooney Viscometer)

Note: Rotorless Mooney Viscometer, RLM-4 does not conform to above testing standards.



Model AM-4
Die configuration • V-groove (Standard)

• Square groove (Option)
Mooney viscosity 200M max.
Test temperature 200°C max.
Rotor speed 2±0.02rpm
Power supply Single-phase, AC200 to 230V, 50/60Hz, 2.4kVA (or specify)
Compressed air 0.4 to 0.6MPa
Dimensions W430 × D600 × H1190 mm
Weight (approx.) 155 kg



Options



PC and testing software CON-L
Stress relaxation measurement M-SR2
Rotor preheating option M-RPH
Air filter set AC-4
Square shape groove die —–



Spare parts



L rotor 2110059
S rotor 2110058
Rubber bushing 4102550
Pt 100 resistance thermometer for control 8120008 / 8120012
Needle roller bearing —–
Main PCB —–
CPU board —–
24V power supply —–
5-15 power supply —–
Touch screen —–
Safety door switch —–
Die stop switch —–
Load cell (with rubber mount) —–
Hanging wire for internal weight —–
Vertical shaft —–
Heater (mica ring heater, 530W) —–
K thermocouple for overheat protection —–







Rotorless Mooney Viscometer | 274-RLM-4

The Rotorless Mooney Viscometer model RLM-4 conducts Mooney viscosity test and Mooney Scorch
test. In order to eliminate the problem of frictional resistance of rotor of conventional Mooney
Viscometer, this model employs a rotorless mechanism.



Model RLM-4
Related standard N/A (Toyoseiki original design)
Sample chamber die Rotorless (contactless, sealed type)
Mooney viscosity 200M max.
Test temperature 200°C max.
Rotation 2rpm
Power supply Single-phase, AC200V, 50/60Hz, 2.4kVA (or specify)
Compressed air 0.45MPa
Dimensions W430 × D600 × H1190mm
Weight (approx.) 160kg
