Rubber Tack Tester / PICMA Tack Tester™ | 235-P-3

  • P-3 P-3

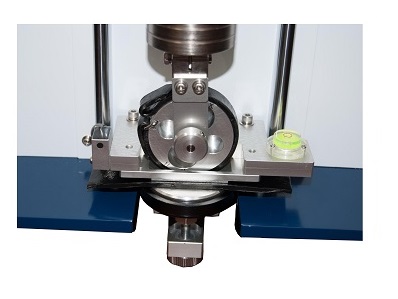

  • Sample holder and sample mounting wheel (testing head) Sample holder and sample mounting wheel (testing head)
  • P-3
  • Sample holder and sample mounting wheel (testing head)

Rubber Tack Tester / PICMA Tack Tester™ | 235-P-3

No applicable standard(s)

The PICMA Tack Tester measures the tackiness of rubber and other adhesive materials.

Model P-3
Tackiness measurement method Load cell
Tackiness measurement range 0 – 30.0N (Resolution 0.1N)
Applying force (load weights) • 2 – 5N  (Standard)

• 2 – 20N (Option)
Number of repeated measurements  1, 3, 5  (Selectable)
Dwell time 99.9sec. max. (adjustable)
Sample mounting wheel (testing head) lowering speed (1) HIGH 1000mm/min. / LOW 60mm/min.

(2) HIGH 500mm/min. / LOW 60mm/min.

(to be selected)
Sample mounting wheel (testing head) rising   speed (1) 5 / 7.5 / 10 / 15 / 20 / 25 / 30 / 50mm/min. (Low speed range)

(2) 100 / 500 / 700 / 1000 / 1250 / 1500 / 2000 / 3000mm/min. (High speed range)

(3) 5 / 10 / 50 / 100 / 500 / 1000 / 1500 / 3000mm/min. (Wide speed range)

(to be selected)
Interface RS-232C
Electrical Single-phase, AC100-240V, 50/60Hz, 0.3kVA
Dimensions W300 × D330 × H510 mm
Net weight (approx.) 18kg
