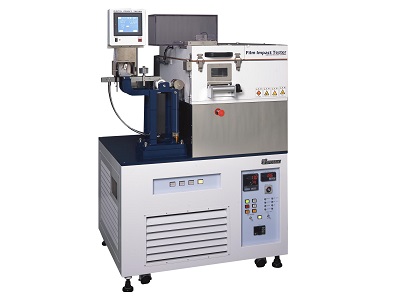

Film Impact Tester | No.195/196-
-
-
The Film Impact Tester measures puncture impact strength of thin materials such as films and wrapping papers by puncturing of a hemispherical hammer.
Specifications
| Catalog No. | 195 | 196 |
| Model | FT-DG | R |
| Capacity |
|
|
| Impact head | Hemispherical diameter ∅12.7mm & 25.4mm | |
| Temperature range | N/A | -35°C to 100°C |
| Temperature control method | N/A | Refrigerator & heater |
| Power supply | Single-phase, AC100V, 50/60Hz, 0.2kVA (or specify) | Three-phase, AC200V, 50/60Hz, 6.9kVA (or specify) |
| Dimensions | W740 × D300 × H750mm | W1300 × D800 × H1750mm |
| Weight (Approx.) | 82kg | 350kg |
