TAPPI Standard Sheet Machine | 177/179
TAPPI Standard Sheet Machine | 177/179
In order to test the physical properties of pulp, it is necessary to understand the effects of various factors in the preparation of base paper, such as pulp material, pulping conditions, beating method conditions, and filler sizing agents, on the properties of paper, and to prepare samples.
This equipment is a manual sheet machine used to estimate these values with a small sample.
| JIS P 8222 |
Pulps-Preparation of laboratory sheets for physical testing-Conventional sheet-former method |
| ISO 5269-1 | Pulps — Preparation of laboratory sheets for physical testing — Part 1: Conventional sheet-former method |

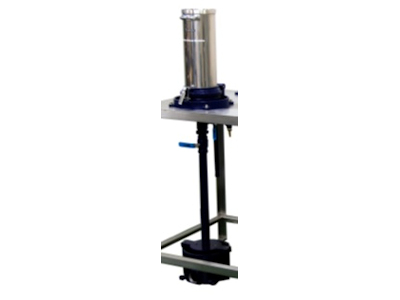

Sheet Former | 177
| Model | D158-M |
| Sheet forming area | ∅158mm |
| Screen wire | 125µm (Approx. 120 mesh) |
| Couch roll weight | 13kg |

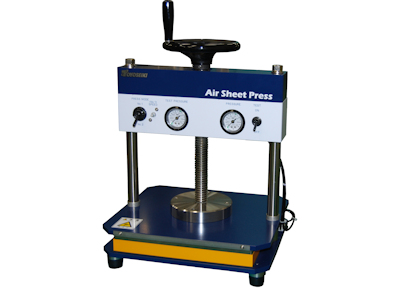

Air Sheet Press | 177
| Model | E-1 |
| Press system | Pneumatic |
| Max pressure | 410kPa |
| Press plate | 285 × 285mm |
| Stroke | Approx. 150mm max. |
| Dimensions | W350 × D300 × H700mm |
| Weight | Approx. 50kg |

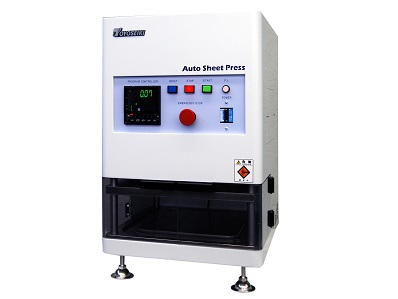

Auto Sheet Press (Programmable model) | 179
| Model | ASP |
| Press system | Pneumatic |
| Max pressure | 0.88MPa |
| Pressure time setting | By PLC (Programmable) |
| Press plate | 270 × 270mm |
| Stroke | 95mm max. |
| Electricity | Single-phase, AC100V, 50/60Hz, 3A (or specify) |
| Dimensions | W420 × D470 × H660mm |
| Weight | Approx. 100kg |
Sheet Machine Dryer | 177
| Model | D158-D |
| Electricity | Single-phase, AC100V、50/60Hz、0.5A (or specify) |
Metal Rack | 177
| Model | DSK |
